FDWSS Temperature Gauge

  • Home
  • Products
  • FDWSS Temperature Gauge
FDWSS

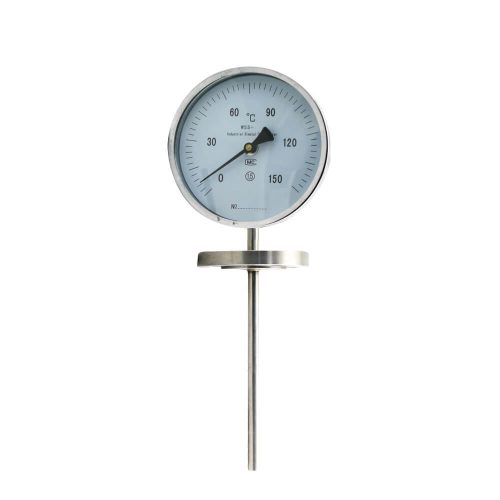

FDWSS Temperature Gauge

Product Feature
  • On-site temperature display, intuitive and convenient
  • Safe and reliable, long service life
  • Variety of structural forms to meet the requirements of different occasions

Inquiry of Product
PDF Download
  • Share:
  • Follow Us:
Facebook Twitter Linkedin Youtube Weixin Whatsapp
Measuring Range– 80℃~ 40℃,- 40℃~ 80℃,0℃~ 200℃,0℃~ 500℃.etc (optional)
Accuracy1.0、1.5（Optional）
Response time ≤40s
Ambient temperature– 40℃~ 80℃（open field）
Probe length100mm ~ 2000mm
Protection tube diameterφ6 、φ12、φ16
Probe Length100mm ~ 10000mm
Protection tube materialSS304,SS316,SS lined with PTFE, etc
Dial Diameterφ60、φ100、φ150
Dial DirectionAxial type,Radial type,Adjustable type
InstallationThreaded,flanged,etc

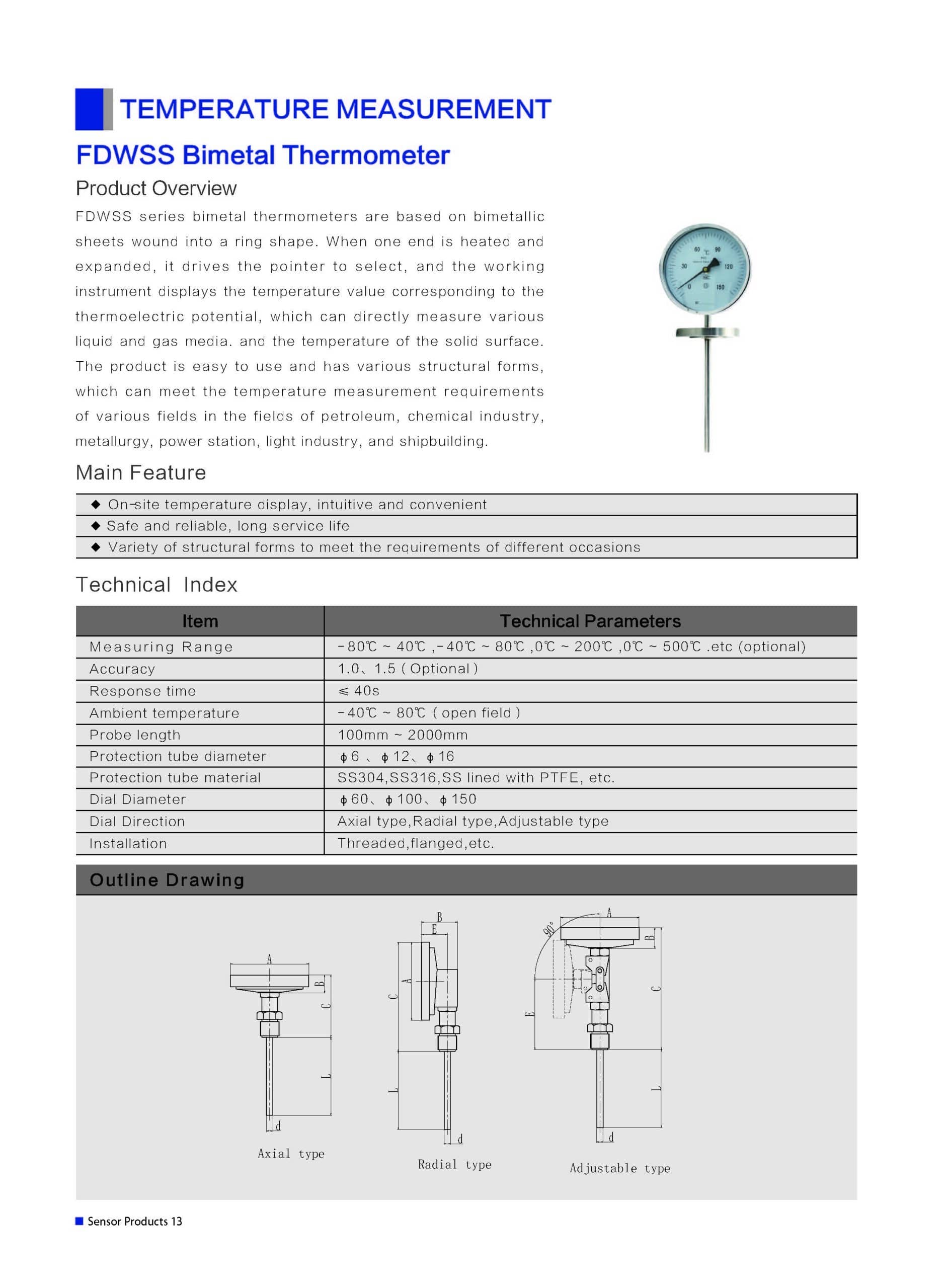

FDWSS series bimetal thermometers are based on bimetallic sheets wound into a ring shape. When one end is heated and expanded, it drives the pointer to select, and the working instrument displays the temperature value corresponding to the thermoelectric potential, which can directly measure various liquid and gas media. and the temperature of the solid surface. The product is easy to use and has various structural forms, which can meet the temperature measurement requirements of various fields in the fields of petroleum, chemical industry, metallurgy, power station, light industry, and shipbuilding.
